1m x 8m Wind Tunnel


Using Pressure Scanning Setup
Operating Procedure :
1.Select Model (Text Data File) :


2. Input ambient pressure
Lab Pressure (KPa)

3. Input tunnel air temperature
Air Temperature (Kelvin)

4.Set angle of attack
Angle of Attack (Deg)

5. Select Wind velocity for run
Tunnel Wind Speed (m/s)

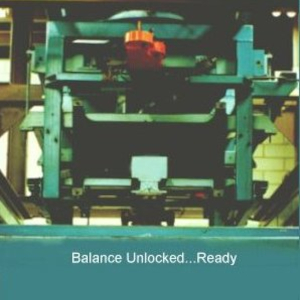

Click the 'Load' Button to mount the wing in the test section. Once you have correctly set all inputs then click the 'Start' button.
