Potential Flow Streamlines

Streamlines can be define by a streamfunction expression in cartesion coordinates.
Coordinates can be entered as follows:

      x -- x ordinate, y -- y ordinate
           Operators : * / + - ^
           Functions : sin,cos,ln,atan,sqrt
Note : there is no guarantee that any chosen function is a valid potential flow. You need to verify all functions using the continuity equation.

Streamfunction Expression :

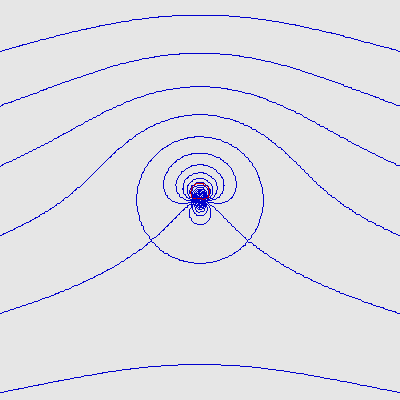

y-4000*y/(x^2+y^2) +40.58*ln(x^2 + y^2)
E.Gs.
Circular Cylinder Flow ,  Rotating Cylinder Flow ,  Source Flow ,  Vortex Flow ,  Source Sink Pair,
Imaged Source Pair in Stream (Close) ,  Imaged Source Pair in Stream(Far) ,  Right Angle Corner Flow ,  Inclined Uniform Flow ,
