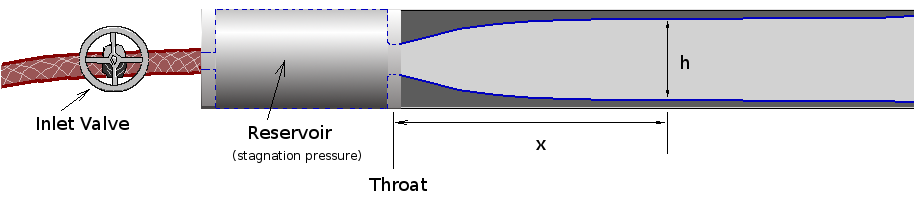

| Position (x) (mm) | Height (h) (mm) | Comment |
| 0.0 | 14.5 | Throat |
| 10.0 | 19.7 | Static pressure port 1 |
| 29.0 | 30.0 | Static pressure port 2 |
| 48.0 | 35.3 | Static pressure port 3 |
| 67.0 | 38.1 | Static pressure port 4 |
| 86.0 | 39.1 | Static pressure port 5 |
| 105.0 | 39.5 | Static pressure port 6 |
| 124.0 | 39.8 | Static pressure port 7 |
| 143.0 | 40.0 | Static pressure port 8 |
| 162.0 | 40.3 | Static pressure port 9 |
| 181.0 | 40.5 | Static pressure port 10
Pitot probe tip location |
| 200.0 | 40.6 | Static pressure port 11 |
| 219.0 | 40.8 | Static pressure port 12 |
| 238.0 | 41.4 | Static pressure port 13 |
| 257.0 | 43.2 | Static pressure port 14 |
| Nozzle width = 25.4 mm |
|
