NACA Aerofoil Section Examples
|
This page shows examples of NACA two dimensional aerofoil sections. The input code for the NACA aerofoil generation program is shown for various families of sections; 4-digit, 5-digit, 6-series and 6A-series families of sections. Click here to go to the NACA aerofoil generator Click here to run a 2D Panel Method analysis of an aerofoil. | ||

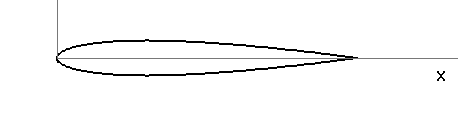

 4-digit 0012 |

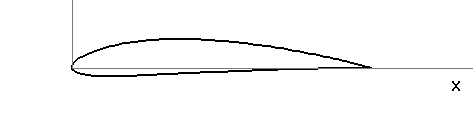

 4-digit 4412 |

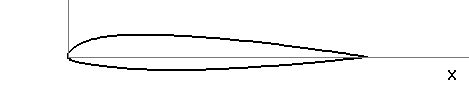

 5-digit 23012 |

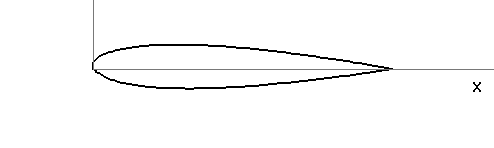

 5-digit 21015 |

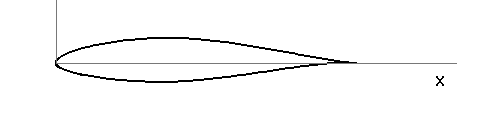

 6-digit 64-215 |

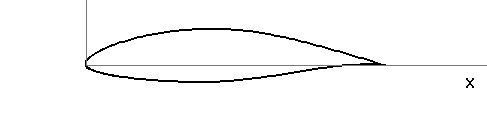

 6-digit 65(3)-618 |

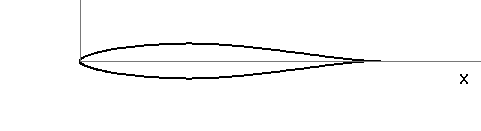

 6-digit 64(1)-012 |

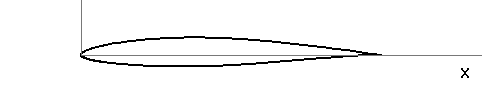

 6-digit 63A210 |

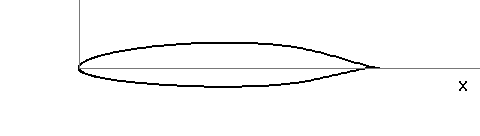

 6-digit 67(1)-215 |
